Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Marshell
  • Model Number: CDD16
  • Type: Powered Pallet Truck
  • Power Souce: AC Motor
  • Rated Loading Capacity: 1600KG
  • Max. Lifting Height: 3000mm
  • Min. Lifting Height: 80mm
  • Fork Length: 685mm
  • Fork Width: 685mm
  • Overall Dimensions: 2550x790x2070mm
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Rated Loading: 1600kg
  • Loading center distance: 600mm
  • Overall Length: 2550mm
  • Overall Width: 790mm
  • Overall Height: 2070mm
  • Ground Clearance: 20mm
  • Wheelbase: 1420mm
  • Minimum outside turning radius: 1600mm
  • Weight(without loading): 1530kg
  • Battery: 24/270V/Ah

Packaging & Delivery

Packaging Details wooden framed case

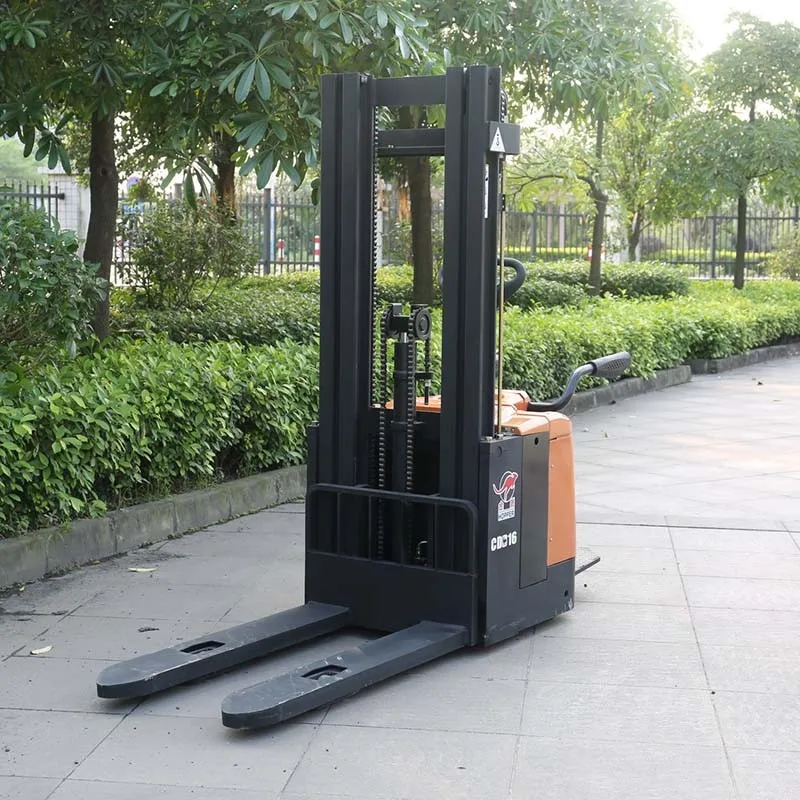

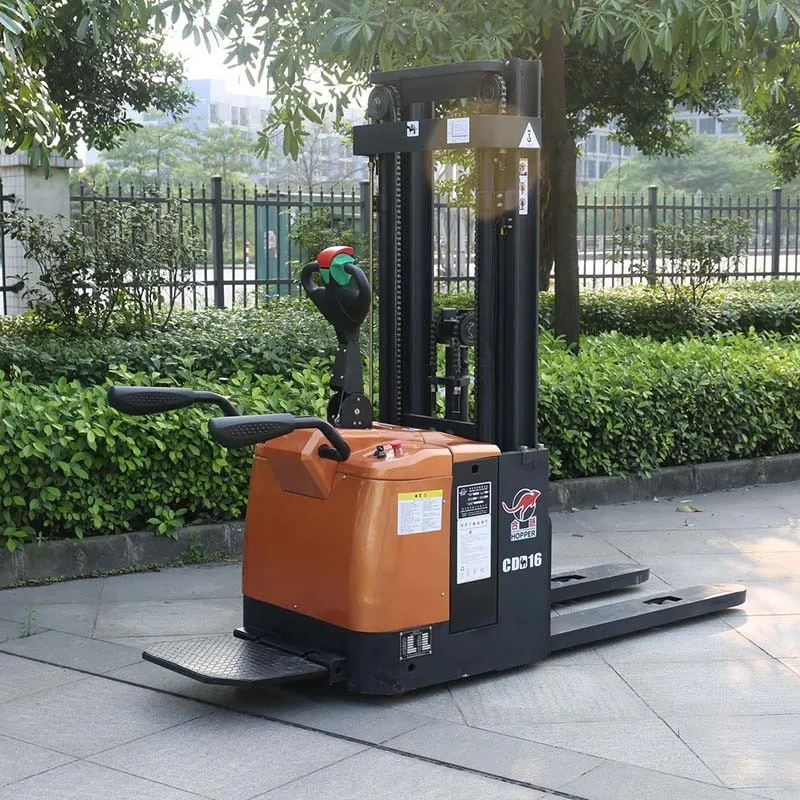

Factory price Battery Operated Powered 1.6T Electric Stacker CDD16

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode

1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours



TIPS

 Does not apply to contain flammable and explosive gas or dust

Factory price Battery Operated Powered 1.6T Electric Stacker CDD16

Model  CDD16
Load capacity            Q(kg)1600
Load centre distance                c(mm)600
Overall lengthI1/I2(mm)2550/2062
Overall width             b1(mm)790
Overall height                h6(mm)2070
Fork height,lowered           h3(mm)85
Max.lift height    h1(mm)3000
Wheelbase                  y(mm)1420
Fork outside spacing         b2(mm)685
Fork inside spacing           b4(mm)315
Fork width                 e(mm)185
Front tread                b3(mm)500
Max.lift speedunladenmm/s160
laden mm/s120
Max. travel speedunladenkm/h6
laden km/h6
Turning radius W1(mm)1600
Max. gradability,laden%5
Max. gradability,unladen%8
Service weight(with battery)kg1300
Battery capacityAh270
Battery voltageV24
Aisle width for lengthwaysPallets 1000x1200Ast(mm)2500
Pallets 800x1200Ast(mm)2400

Factory price Battery Operated Powered 1.6T Electric Stacker CDD16
