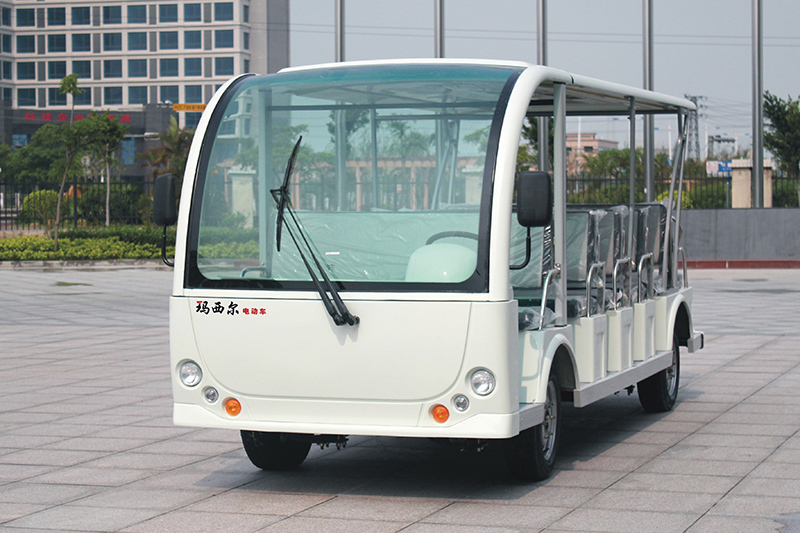

CE approved 23 Seats electric tourist bus with price factory offer DN-23(China)

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Marshell
Model Number:
DN-23
Passenger Capacity:
23
Controller:
Curtis controller, 72V550A
Motor:
51V9KW /AC
Charger:
2*25A/48V full automatic high frequency charger
Battery:
6V battery x 24pcs
Rang:
120KM
Max.speed:
25KM
Suspenwith telescopic shock absorbersion:
Longitudinal leaf spring with telescopic shock absorber
Braking System:
Four wheels hydraulic braking system and independent parking brake
Chassis:
Steel
Supply Ability
Supply Ability:
1000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Container order, remove the canopy and package in the protective material.
Sample order, packaged in the individual steel shelf and the protective material.
Port
shanghai or shenzhen
Lead Time :
2 weeks after receiving the deposit

CE approved 23 Seats electric tourist bus with price factory offer DN-23(China)

1. Standard color: White;arractive design and powerful  in appearance , with strong carrying capacity and lower noise.

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure

3. Small turning radius; and smart steering system ;Whole style steel rear axle;

4. Can be easy modified to transportation vechicles,

5. CE certificate for whole carts;

6. Import main parts:US batteries( From USA) and Curtis controller(From USA).Delta-Q chargers(From Canada)

7. Four wheels hydraulic braking system and independent parking brake

CE approved 23 Seats electric tourist bus with price factory offer DN-23(China)

ModelDN-23
Passenger Capacity23
Power supply
Battery6V battery *24pcs
Motor51V9KW/AC
Controller72V550A
Charger2*48V25A full automatic
 high frequency charger
Performance
Max. Speed25km/h
Max.travelling range120km
Climbing capactity15%
Brake Range<=6
Minmum turning radius8.5m
Gross Weight 2130kg
Carrying capacity1750kg
Chassis
Steeringrecirculating-ball steering
brakesFour wheels hydraulic
 braking system and independent parking brake
tire195/70R15C
Ground clearance100mm
Overall dimension(L*w*h)5600*2100*2205mm
Qty per container1pcs/20FT
2pcs/40FT
2pcs/40HQ
Standard partsFront and rear lights
Rear view mirrors
Speed meter
Wiper
Power assisted steering system
AC system
Optional partsLoud speaker
CD player
Weather enclosure
Side sunshade curtain
3 points seat belt for driver,
Trojan Battery
