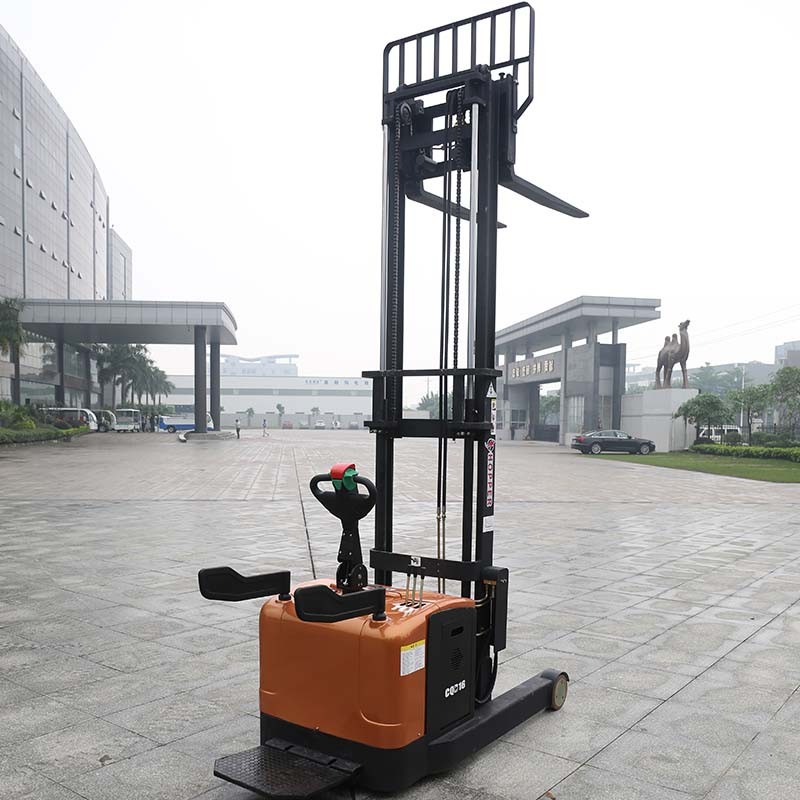

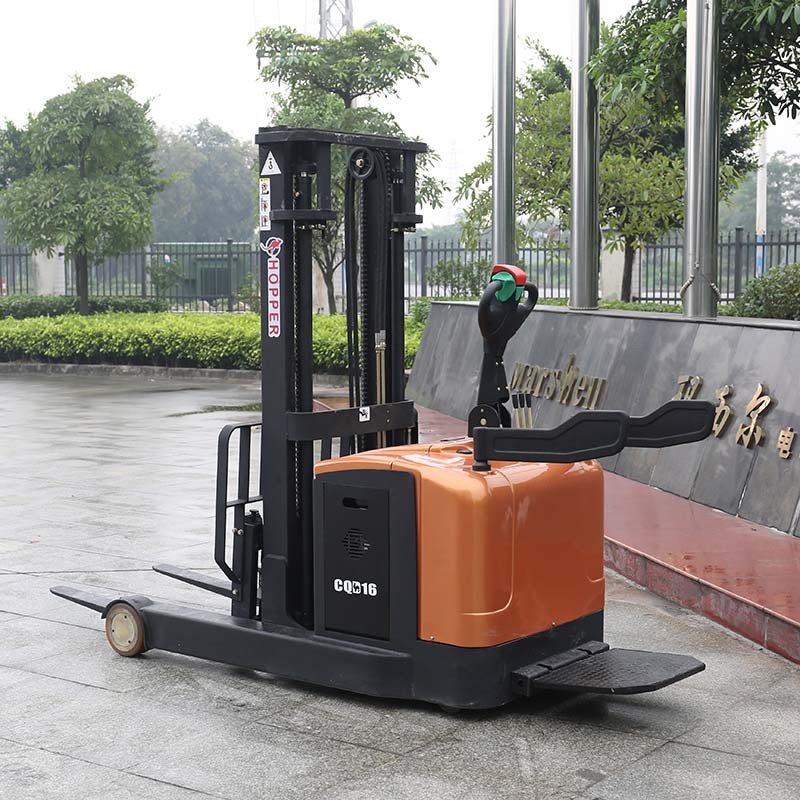

China OEM Supplier Forklift Truck Electric Reach Stacker (CQD16)

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Marshell
Model Number:
CQD16
Type:
Manual Pallet Truck
Power Souce:
AC Motor
Rated Loading Capacity:
1600KG
Max. Lifting Height:
3000mm
Min. Lifting Height:
80mm
Fork Length:
2320MM
Fork Width:
1035MM
Overall Dimensions:
100/40/1070MM
Certification:
CE
After-sales Service Provided:
Overseas third-party support available
Rated Loading:
1600kg
Loading center distance:
500MM
Overall Length:
2320MM
Overall Width:
1035MM
Lift height:
3500/4000mm
Fork dimensions:
100/40/1070MM
Wheelbase:
1400MM
Minimum outside turning radius:
1640MM
Weight(without loading):
1600KG
Battery:
24V 240AH
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden framed case
Port
shanghai

China OEM Supplier Forklift Truck Electric Reach Stacker (CQD16)

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode
1. Vertical driving wheel, driving efficiency, easy installation & maintenance.
2. Compact struture and low gravity.
3. Tilting system forks easy for loading and stacking.



TIPS

 Does not apply to contain flammable and explosive gas or dust



ModelCQD10CQD16CQD20
Loading capacity1000KG1600KG2000KG
Loading center distance500MM500MM500MM
Wheelbase1100MM1400MM1500MM
Servise weight (with battery)1500KG1600KG2500KG
Tyre size, drving wheel230/75MM230/75MM230/75MM
Tyre size, loading wheel180/55MM210/85MM210/85MM
Tyre size, balance wheel130/55MM130/55MM130/55MM
Driving wheel+Loading wheel/Balance wheel1+2/21+2/21+2/2
Front overhang100mm130mm130mm
Lift height2500/3000mm3500/4000mm4500/5000mm
Height of triller in drive position min./max.1100/1400mm1100/1400mm1100/1400mm
Height, mast lowered1725/1925mm2225/2475mm2015/2240mm
Overall lengh2250MM2320MM2420MM
Overall width1000MM1035MM1035MM
Turn radius1350MM1640MM1760MM
Fork dimensions100/35/1070MM100/40/1070MM100/40/1070MM
Fork carriage width200-725mm200-725mm200-725mm
Aisle width for pallets 1000*1200 crossways2500mm2800mm2900m
Aisle width for pallet 800*1200 crossways2650MM2950MM3050MM
Reach distance350mm470mm470mm
Travel speed(laden/unladen)4/5KM/H4/5KM/H4/5KM/H
Lift speed(laden/unladen)30/50MM/S25/45MM/S18/40MM/S
Max. gradeability(laden/unladen)5/8%5/8%5/8%
Driving motor1.5KW1.5KW1.5KW
Lift Motor2.2KW3KW3KW
Battery volts./Cap.24V 240AH24V 240AH24V 240AH
Container qty (20FT/40FT/40HQ)4/8/8PCS4/8/8PCS4/8/8PCS
