Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Marshell
  • Model Number: CDD14
  • Type: Powered Pallet Truck
  • Power Souce: AC Motor
  • Rated Loading Capacity: 1600KG
  • Max. Lifting Height: 3000mm
  • Min. Lifting Height: 80mm
  • Fork Length: 685mm
  • Fork Width: 685mm
  • Overall Dimensions: 2550x790x2070mm
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Rated Loading: 1400kg
  • Loading center distance: 600mm
  • Overall Length: 1940 I1/I2(mm)
  • Overall Width: 800 b1(mm)
  • Overall Height: 2065 h6(mm)
  • Wheelbase: 1300 y(mm)
  • Fork height lowered: 85 h3(mm)
  • Minimum outside turning radius: 1470 W1(mm)
  • Weight(without loading): 1000 kg
  • Battery: 24/210V/Ah

Packaging & Delivery

Packaging Details wooden framed case

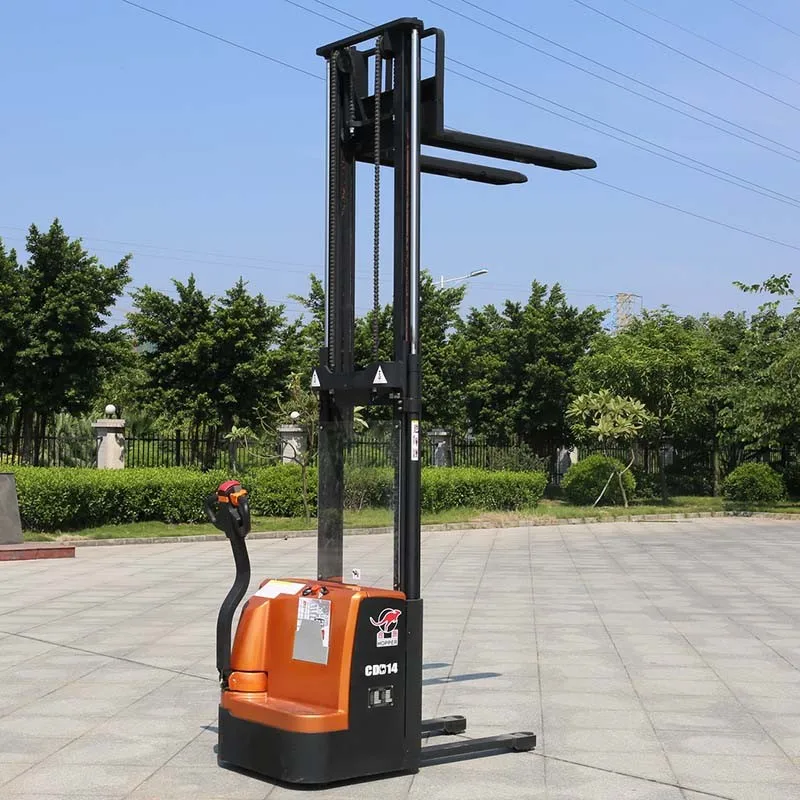

Factory Price Offer Full Electric Powered Forklift Pallet Stacker (CDD14)

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode

1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours



TIPS

 Does not apply to contain flammable and explosive gas or dust

Factory Price Offer Full Electric Powered Forklift Pallet Stacker (CDD14)

GENERAL SPECIFICATION:
Load capacity            Q(kg)1400
Load centre distance       c(mm)600
Overall lengthI1/I2(mm)1940
Overall width             b1(mm)800
Overall height                h6(mm)2065
Fork height,lowered         h3(mm)85
Max.lift height    h1(mm)3000
Wheelbase                  y(mm)1300
Fork outside spacing       b2(mm)685
Fork inside spacing          b4(mm)365
Front tread                b3(mm)525
Max.lift speedunladenmm/s160
laden mm/s120
Max. travelspeedunladenkm/h5
laden km/h4.5
Turning radius W1(mm)1470
Max. gradability,laden%5
Max. gradability,unladen%8
Service weight(with battery)kg1000
Battery capacityAh210
Battery voltageV24
Aisle width for lengthwaysPallets 1000x1000Ast(mm)1405
Pallets 1000x1200Ast(mm)2340
Container quantity(1*20FT/40FT/40HQ)pcs7pcs/14pcs/14pcs

Factory Price Offer Full Electric Powered Forklift Pallet Stacker (CDD14)
