High Quality 1.0ton Electric Manual Forklift Manual Pallet Stacker (CDSD10)

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Marshell
Model Number:
CDSD10
Type:
Powered Pallet Truck
Power Souce:
AC Motor
Rated Loading Capacity:
1000KG
Max. Lifting Height:
1740mm
Min. Lifting Height:
80mm
Fork Length:
685mm
Fork Width:
685mm
Overall Dimensions:
2550x790x2070mm
Certification:
CE
Rated Loading:
1000kg
Loading center distance:
450 mm
Overall Length:
1740mm
Overall Width:
760mm
Lift height:
1600mm
Turning Radius:
1350 mm
Wheelbase:
760mm
Minimum outside turning radius:
1600mm
Weight(without loading):
365 kg
Battery:
12/100V/Ah
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden framed case
Port
shanghai

China Manufactures New Design Heavy Duty Semi-Electric Stacker (CDSD10)

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode

1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours



TIPS

 Does not apply to contain flammable and explosive gas or dust

China Manufactures New Design Heavy Duty Semi-Electric Stacker (CDSD10)

GENERAL SPECIFICATION:
Model CDSD10
Load capacity/rated loadkg1000
Load center distanceC(mm)450
WheelbaseY(mm)760
Service weight (with battery)kg365
Lift heightH3(mm)1600
Lowered fork heightH1(mm)85
Overall lengthL1(mm)1740
Overall widthB1(mm)760
Turning radiusWa(mm)1350
Fork dimensionss/e/l mm60/150/1100
Width overall forksb5(mm)330-640
Battery volts./ Cap.V/Ah12/100
Container Quantity(1*20FT/40FT/40HQ)pcs14pcs/28pcs/28pcs

China Manufactures New Design Heavy Duty Semi-Electric Stacker (CDSD10)

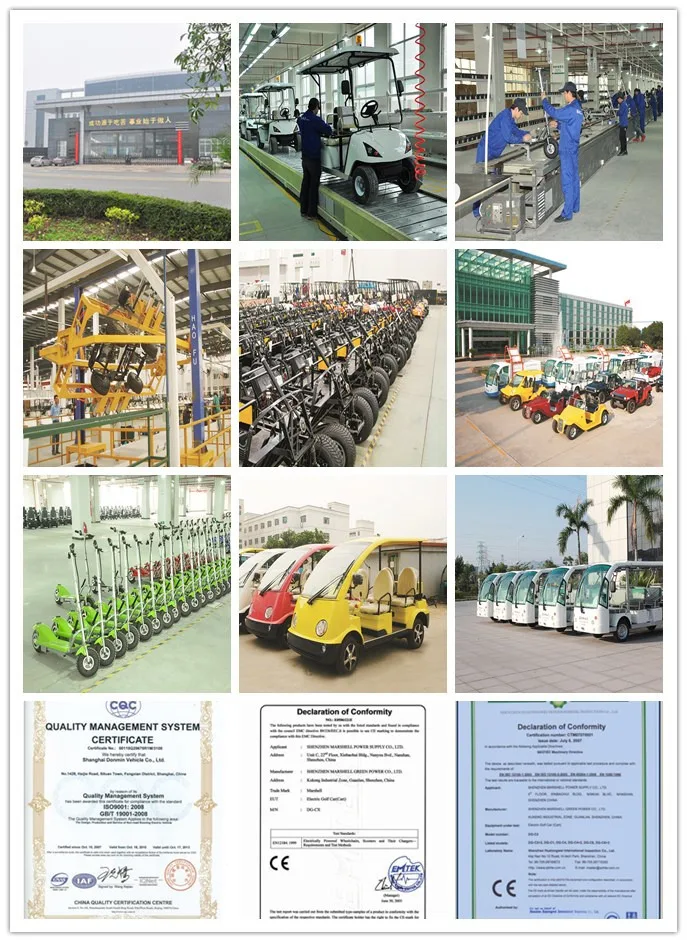

About Marshell Factory
