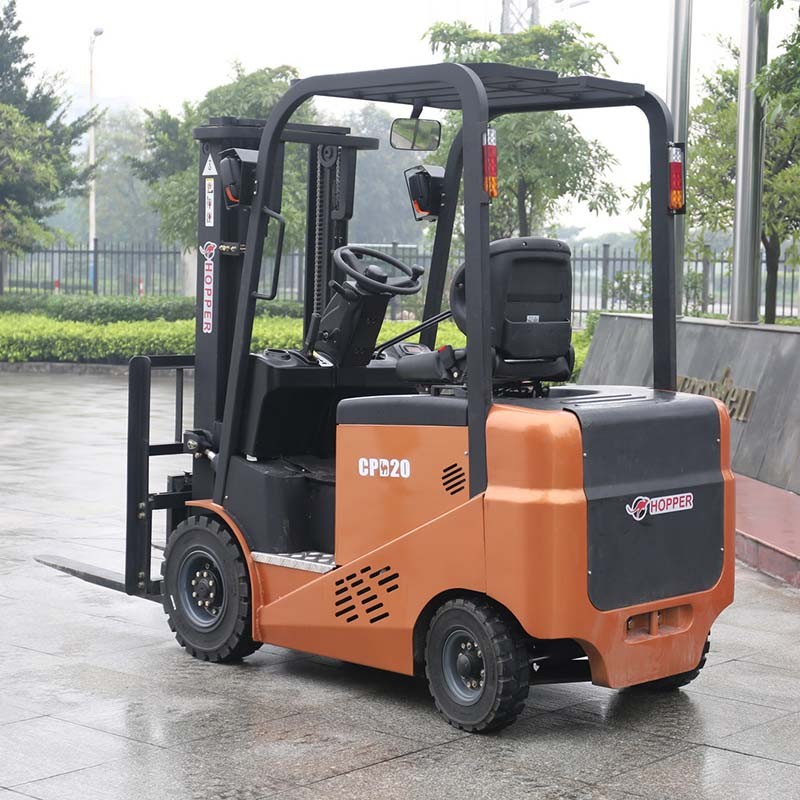

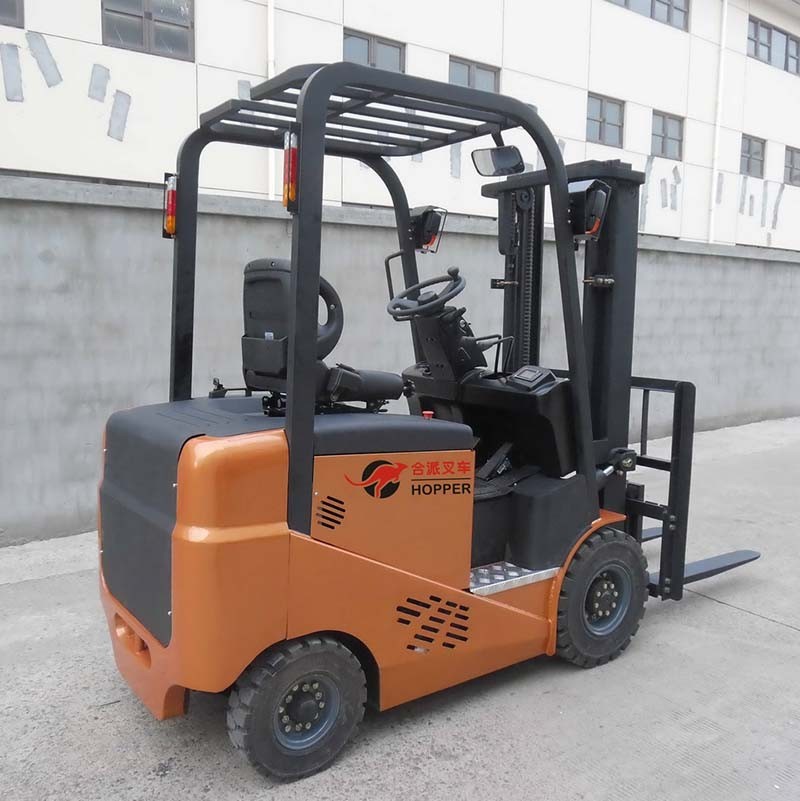

CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)

FOB Reference Price:Get Latest Price
$10,613.00 - $12,932.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
CPD20E
Rated Loading Capacity:
2000KG
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Overseas third-party support available
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Certification:
CE
Overall Dimensions:
3575*12302200mm L*W*H
Power Souce:
AC Motor
Fork Length:
1105mm
Fork Width:
1230
Max. Lifting Height:
3000mm
Min. Lifting Height:
135/125mm
feature:
electric forklift truck
Rated load lifting capacity:
2000kg
Wheelbase:
1400mm
Front suspension distance:
475mm
lifting height:
3000mm
Free lifting height:
140mm
Minimum outside turning radius:
2330mm
Full-loading maximum gradeability:
15%
Loading center distance:
500mm
Type:
Powered Pallet Truck
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Shanghai

CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)

Product Concept

   1 full exchange system control precision, smooth running, driving speed 15km / h, climbing up to 14%

     at full load, Lifting speeds up to 370mm / s
  2, high-performance hydraulic system, low noise, small vibration, high efficiency
  3,80V / 500Ah industrial battery, powerful lasting, most enterprises to meet the high frequency,

     high efficiency, demand for goods handling;
  4, overhead guard and body welding the overall structure, the overall strength.
  5, low noise gear pumps, multi-stage motor speed control, fall protection solenoid valves;

      built-in safety valve lift cylinder.
  6, suitable for indoor and outdoor operation, less demanding on the ground.

Operate Performance

  1, human-oriented design of the control handle, easy to operate hand movements, improving driving comfort;
  2, load sensing hydraulic steering system, lightweight, low noise, more effort;
  3, wide view mast design, the view is clear, lifting height of 3-6 meters.
  4, good regenerative braking process to avoid damage to the goods.

Safety performance

  1 controller with overvoltage, overcurrent protection features, high-temperature, short circuit;
  2, emergency off switch, you can quickly cut off the vehicle power supply
  3, lifting the bottom of the fuel tank explosion-proof valve is installed, immediate pipeline rupture,

      the door     frame is not rapid           decline
  4, intelligent design improves cornering stability of the vehicle deceleration when walking to avoid tipping

      cargo. (Optional)
  5, OPS driver's presence sensing system; When the driver leaves the position after the operation to

      cut off all operating functions, to avoid misuse brings security risks.

CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)

Model

CPD20E
Load capacity/rated load      Qkg2000
Overall length(without fork)L′mm2210
Overall width           Wmm1070

Height, mast extended        H1mm2120
Height of overhead guard      H4mm2180
height when lift      H2   mm3995
Minimum ground clearanceHeight, mast lowered        H5mm120
Ground clearance,unladen/laden,centre of wheelbase  H6mm125
wheel treadFront           W3    mm890
Rear             W2 mm920
Wheelbase                   L1             mm1400
Load distance,centre of drive axle to fork         L2mm430
Lift height                 H   mm3000
Free lift height             H3      mm100
Mast tilt angle    front/rear   α/β° 6/8
Max.lift speedunladenmm/s400
ladenmm/s260
Max.travel speedunladenkm/h14
ladenkm/h12
Turning radius           Rmm2010
Max. gradability,laden%15
Load centre distance                  Cmm500
Service weight(unladen)kg3200
TyreFront

6.50-10(solid tyre)
Rear

5.00-8(solid tyre)
MotorDriveKW8
LiftKW7.5
BatteryV/Ah48/450
Type of drive control

full AC

CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)
