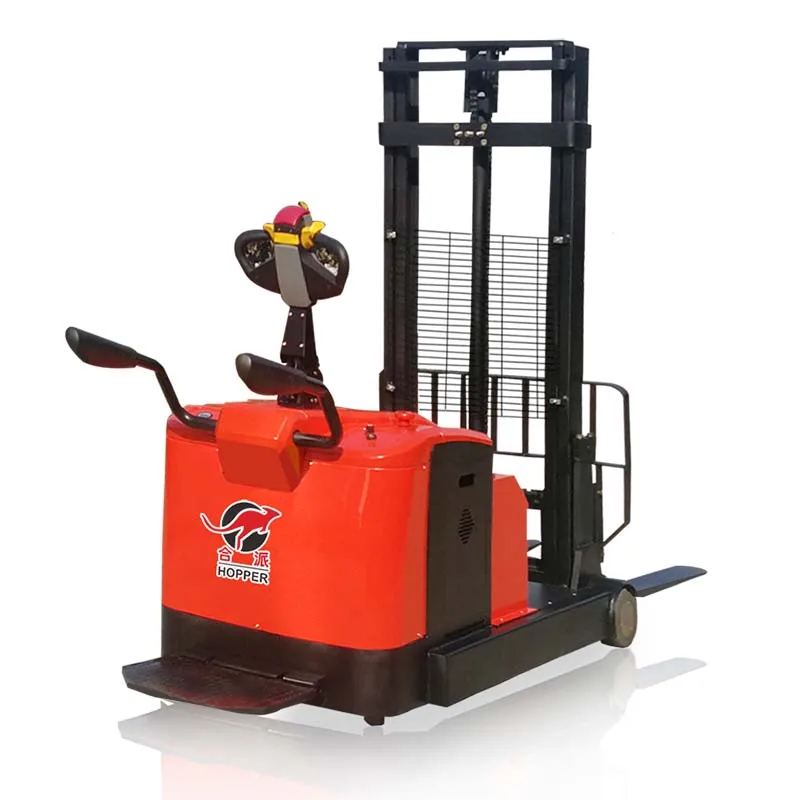

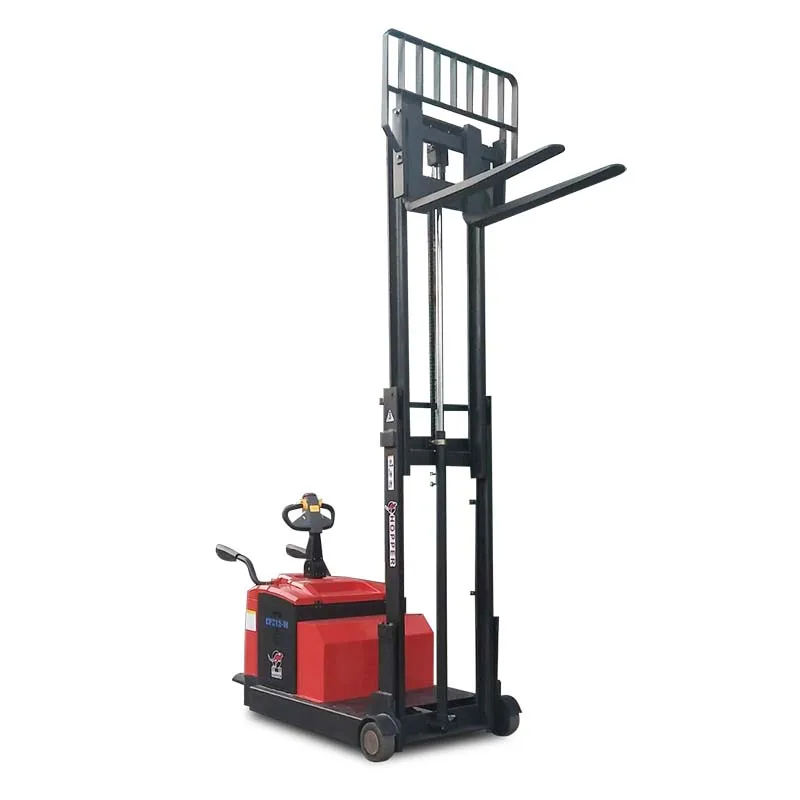

Warehouse Equipment Electric Pallet Stacker for Sale (CPD15-W)

  • >=1 Units
    $1.00
Model Number:
CPD15-W
Rated Loading Capacity:
1500KG
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Overseas third-party support available
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Certification:
CE
Overall Dimensions:
2550x790x2070mm
Fork Length:
2245mm
Fork Width:
1030mm
Max. Lifting Height:
3000mm
Min. Lifting Height:
80mm
Rated Loading:
1500kg
Loading center distance:
500mm
Fork length:
1070mm
Fork width:
100 e
Max . Lift speed laden:
120mm/s
Wheelbase:
1412mm
Minimum outside turning radius:
2145mm
Drive motor(AC):
1.5kw
Battery Voltage:
24v
Type:
Powered Pallet Truck
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden framed case
Port
shanghai

Warehouse Equipment Electric Pallet Stacker for Sale (CPD15-W)

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode

1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours



TIPS

 Does not apply to contain flammable and explosive gas or dust

Warehouse Equipment Electric Pallet Stacker for Sale (CPD15-W)

CPD15-W Technical Parameters
ModelCPD15-W
Load capacity/rated loadQkg1500
Load center distanceCmm500
Maximum lifting heightH3mm3000
Mast tilt angle,front/rearS 3°/ 5°
Max .Travel speed unladen km/h6
Max .Travel speed laden km/h6
Max . Lift speed unladen mm/s135
Max . Lift speed laden mm/s120
Max . gradability, unladen %8
Max . gradability, laden %5
Weight (without battery) kg1644
Weight (with battery) kg1850
Overall length(No fork)  Lmm2245
Overall length (Including fork) L2mm3320
Overall widthb1mm1030
Overall height of overhead guard mm/
Mast height, loweredH1mm2050
Mast height, liftedH2mm3855
Wheelbase Ymm1412
Fork length mm1070
Fork width emm100
Fork height, loweredSmm40
Adjustable range of Fork outside overall width mm200-740
Min.ground clearancem1mm52
Min. turning radius (without pedal)    Wamm1650
Min. turning radius (with pedal)    Wa1mm2145
Aisle width for lengthwaysAstmm3250
Front wheel  mm∅210*85
Drive wheel   mm∅230*75
Caster wheel  mm∅115*55
Wheel material polyurethane
Drive motor(AC) kw1.5
Lift motor(DC) kw2.2
Battery Voltage V24
Battery capacity AH210
Battery Weight  kg 233
Container quantity(20GP/40HQ) unit6/12

Warehouse Equipment Electric Pallet Stacker for Sale (CPD15-W)
